Features & Details
F
e
a
t
u
r
e
s
&
D
e
t
a
i
l
s
- Top Speed: 25MPH (unlocked) | 20 MPH (default)
- Max Range: 55 Miles
- Motor: 500W (Peak 900W)
- Works with Apple Find My™ UL 2271 and UL 2849 Certified
- Battery: 48V 14.4 Ah with LG 21700 Cells
- Weight: 65 LBS
- Total Payload Capacity: 440 LBS
- Rear Cargo Capacity: 120 LBS
- Fits Riders: 5’0” - 6’6”
- Brakes: 4-piston hydraulic, 180mm rotors
- Fork: Hydraulic suspension, 60mm of travel with lockout, 15x110mm Novatec thru-axle
- Drivetrain: SHIMANO 7-speed
- Frame: 6061 Aluminum, integrated wiring, removable battery
- Sensor: Speed

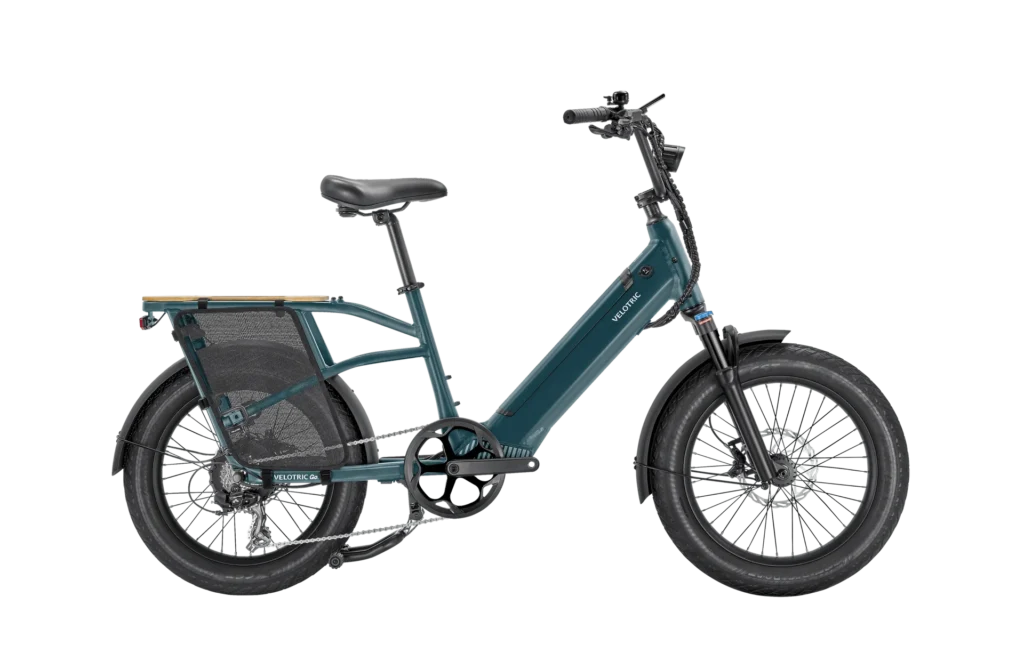

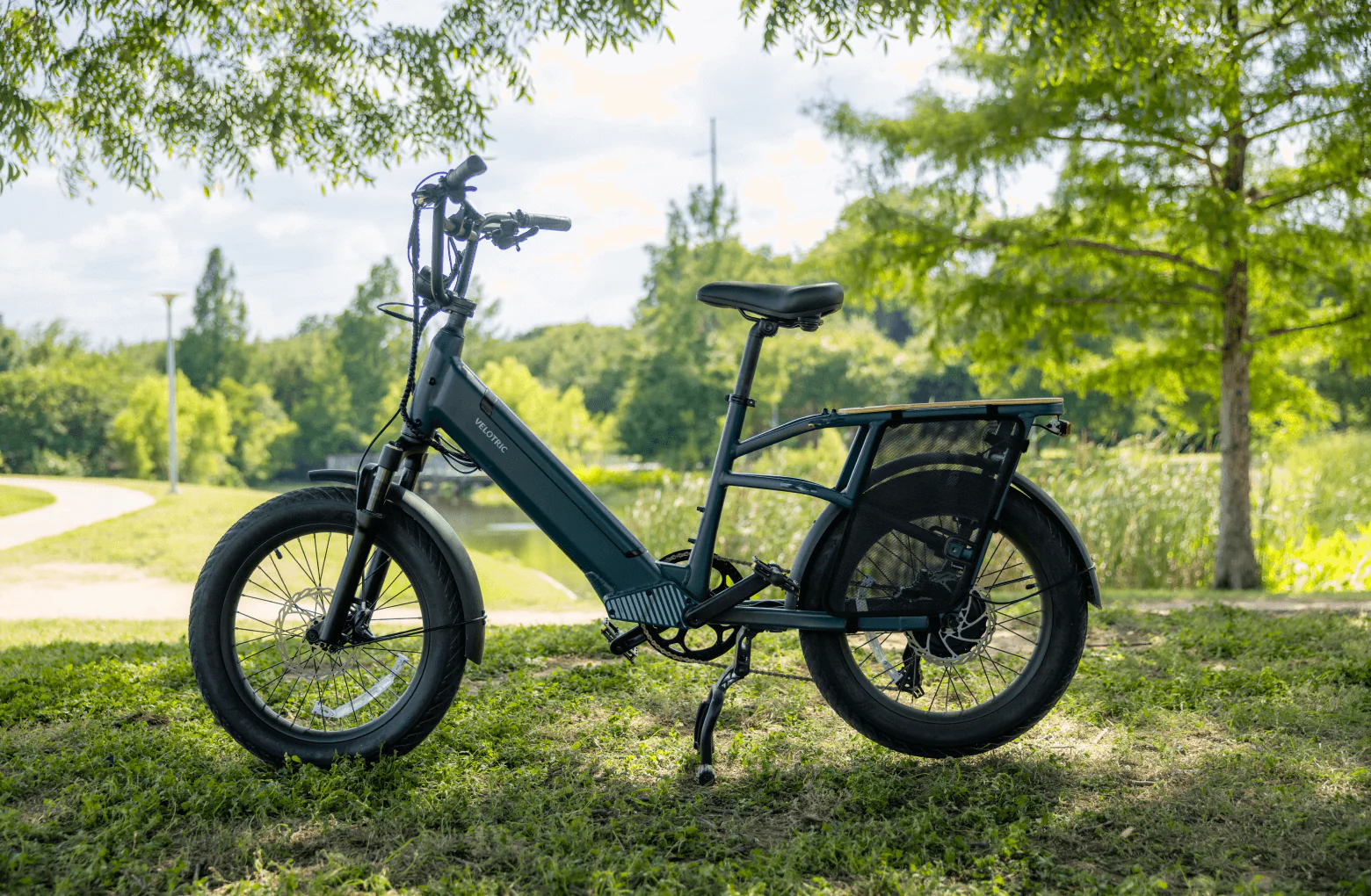

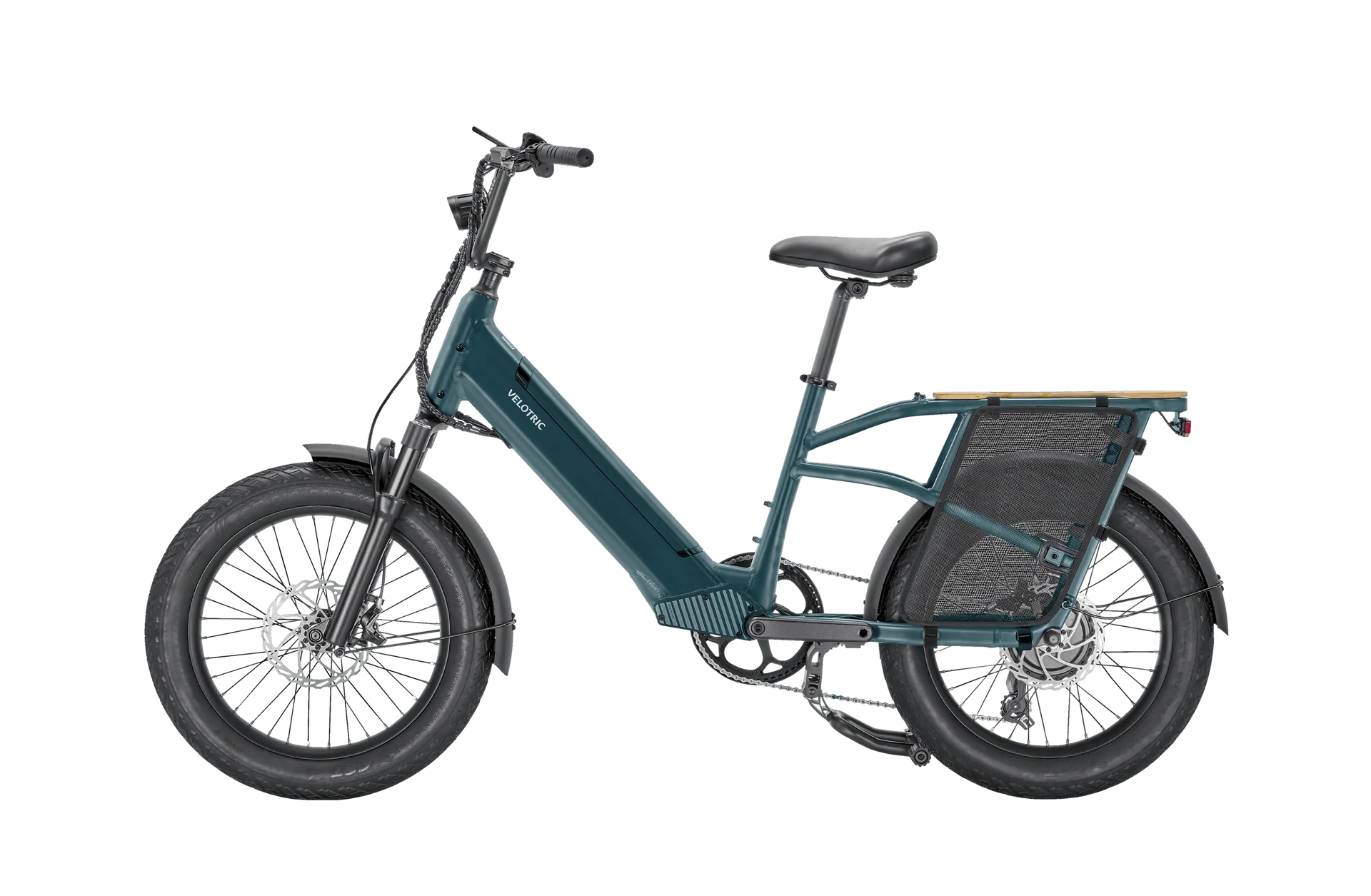

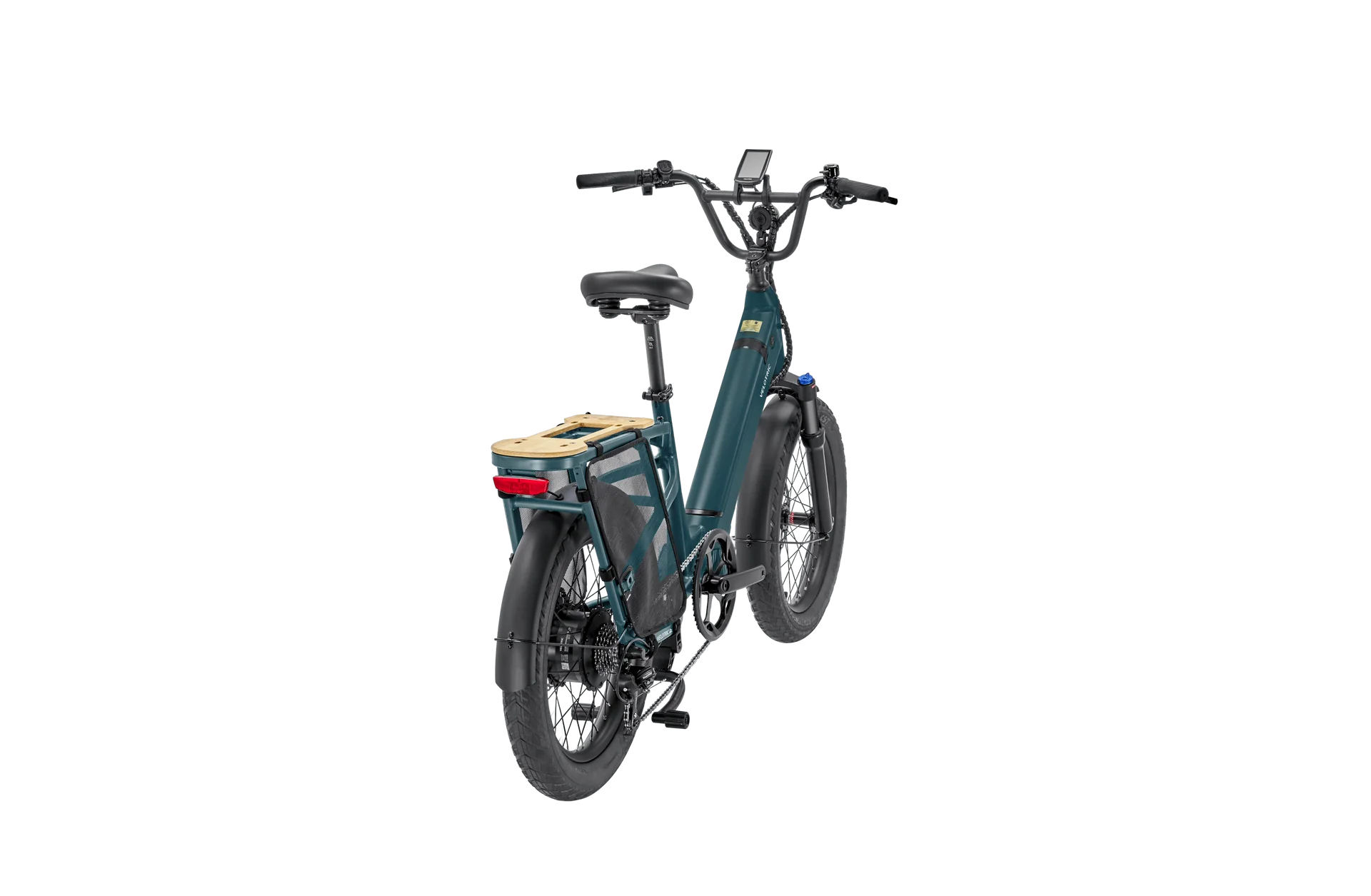

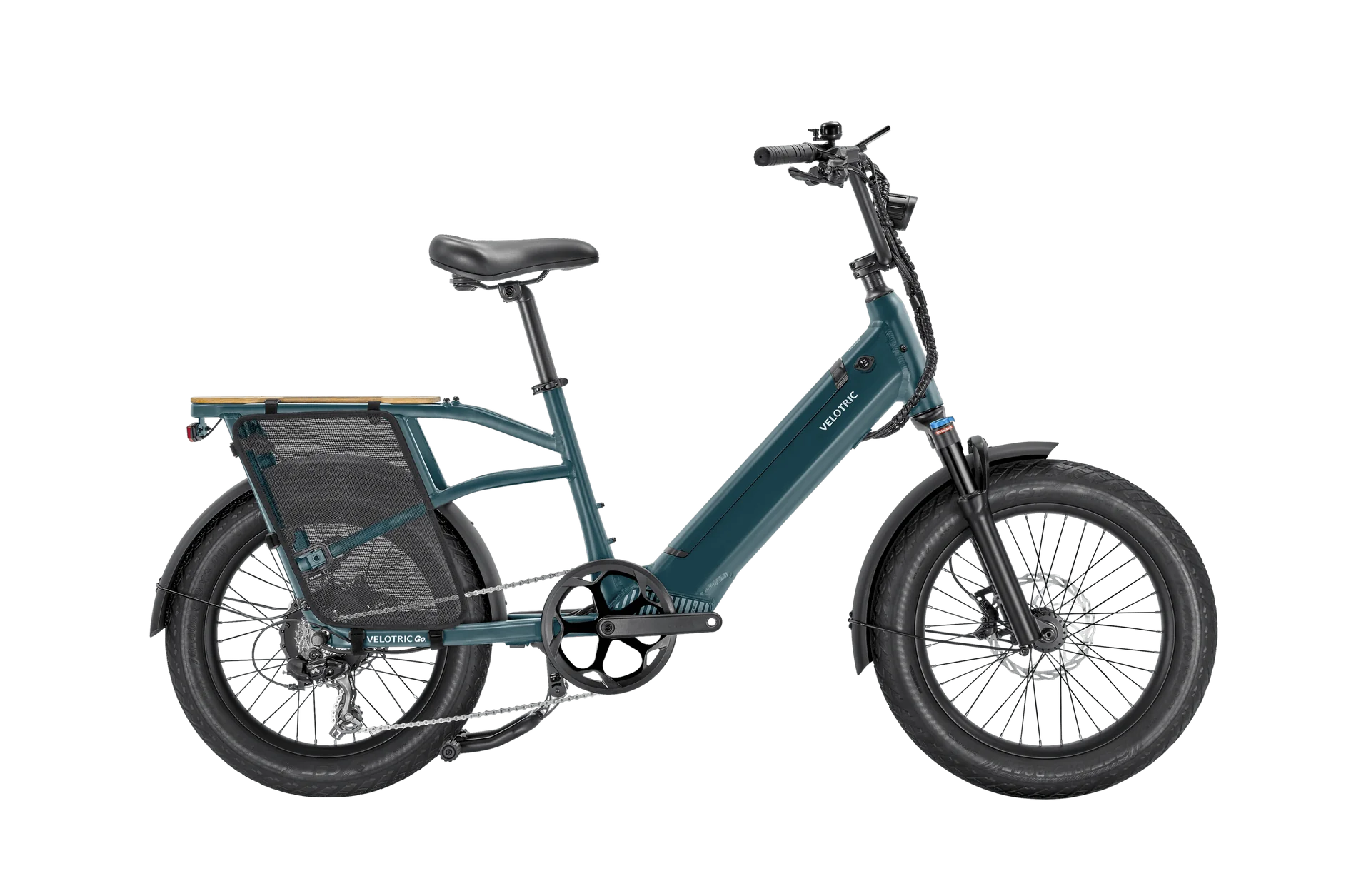

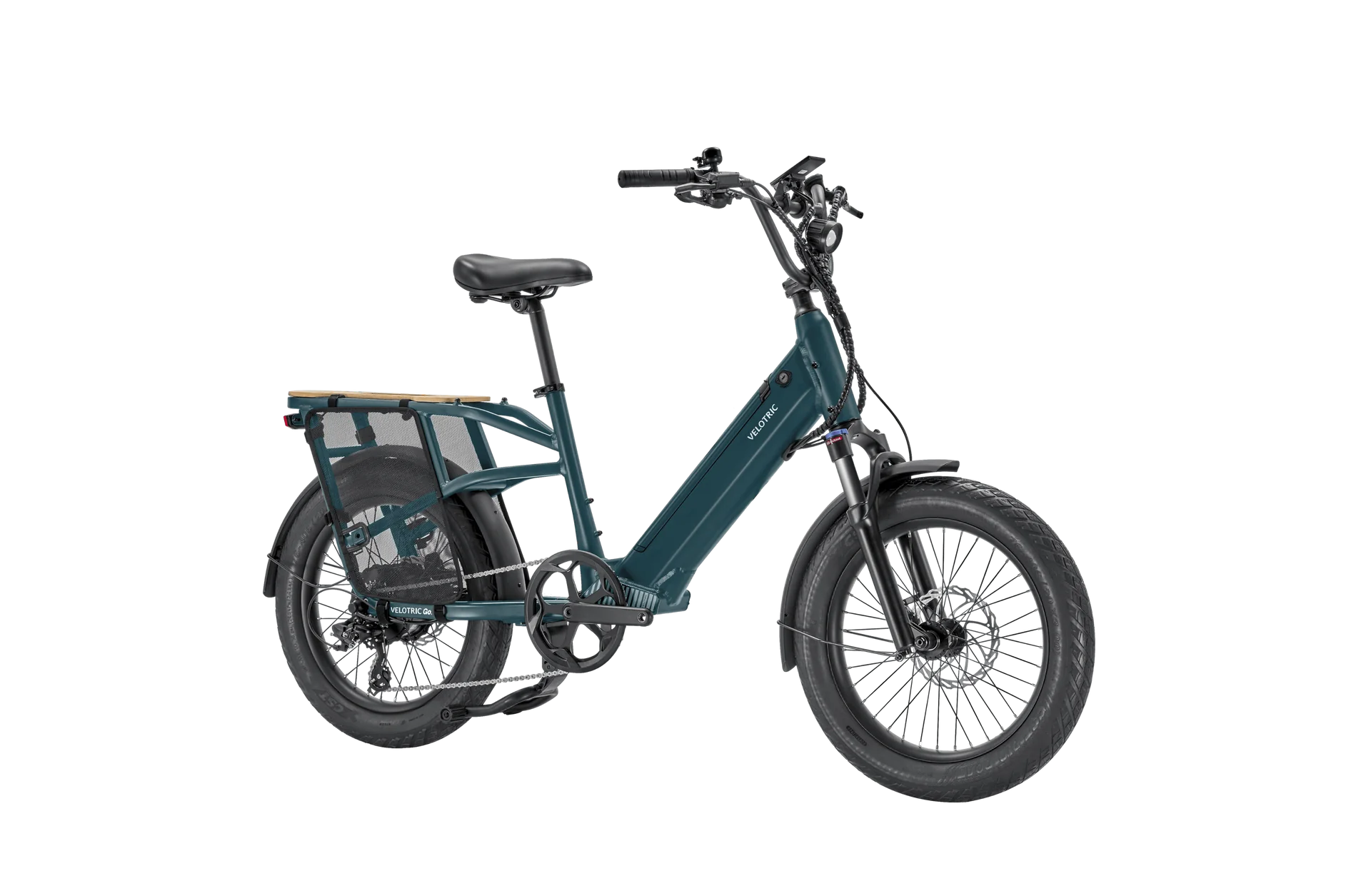

The Velotric Go 1 is small but mighty. Carry up to 440 lbs comfortably with its plush saddle, hydraulic suspension with 60 mm of travel and a frame designed with a lower center of gravity so you can carry it all with ease and comfort.
With a host of accessories, you can customize the perfect configuration for the Velotric Go 1, so that whether it’s a picnic or a weekend adventure, you and your bike are ready to go!
Specification
S
p
e
c
i
f
i
c
a
t
i
o
n
Frame
Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders
Fork
Hydraulic suspension with 60mm travel, 15x110mm thru-axle, with Lock-out
*A 187-lb rider using PAS 1 on flat roads.
Default Speed
20 MPH, Class 2
Max Speed (Unlock)
25 MPH
Throttle Range
Up to 48 miles
Pedal Assist Range
Up to 55 miles
Hill Grade
Throttle only: 8° (14%)
Pedal Assist: 10° (18%)
Pedal Assist: 10° (18%)
Brake
Hydraulic Disc Brake 4-Piston
Rotors
180mm front and rear

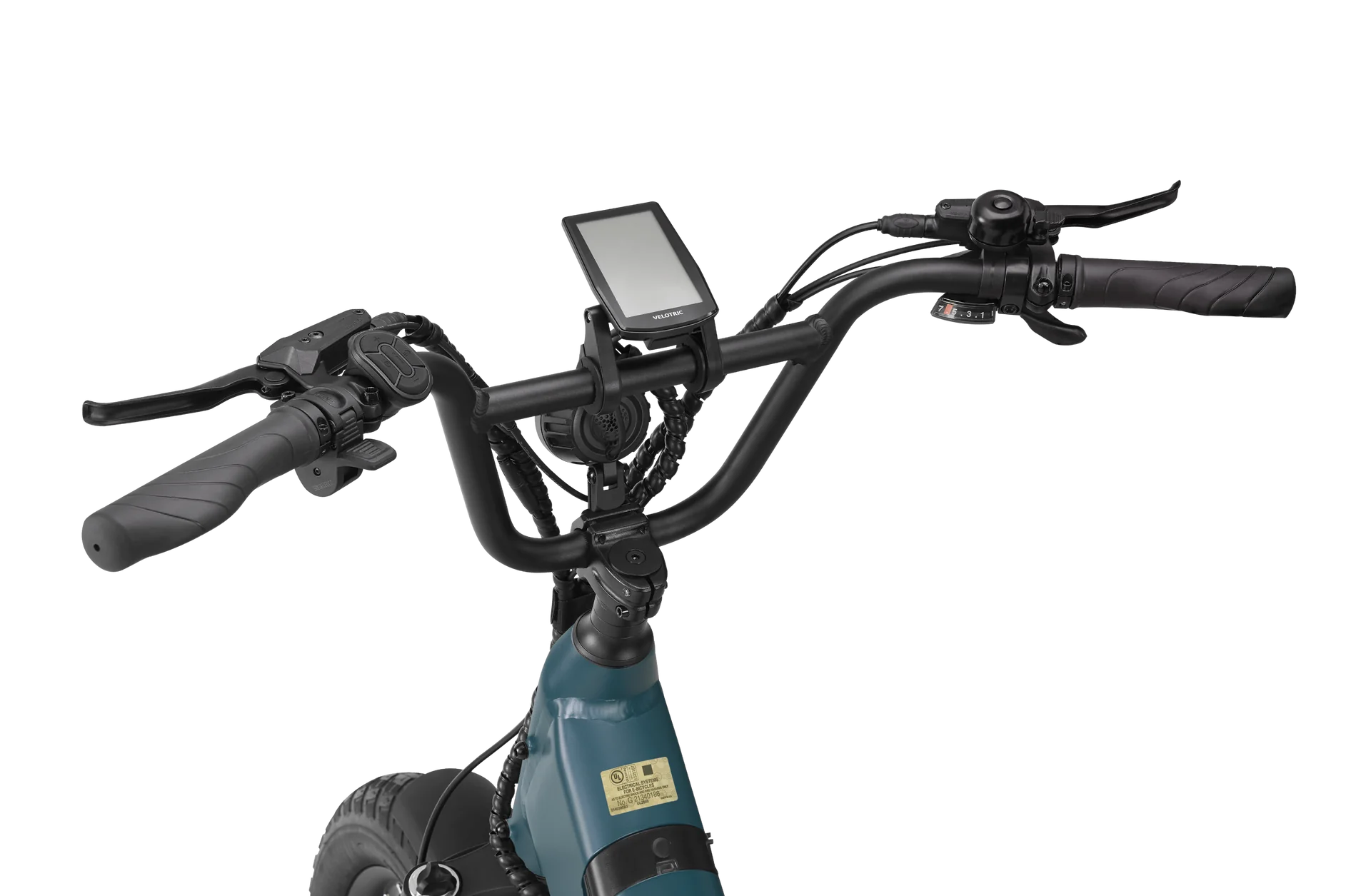

Brake Levers
Aluminum Alloy, with adjustable reach and power cutoff switch

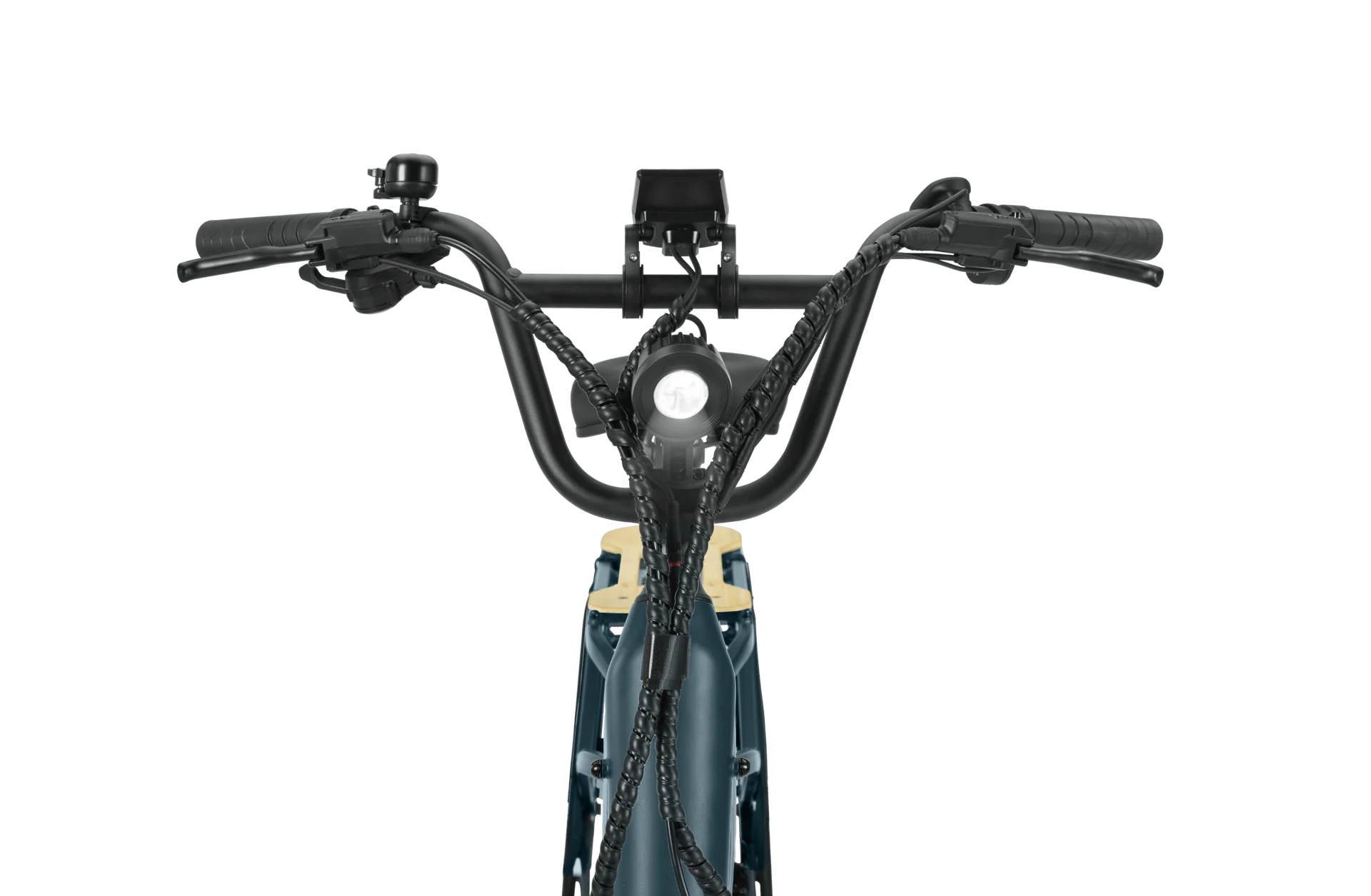

Handlebars
6061 Aluminum alloy, Φ25.4mm, 660mm
Grips
Durable ergonomic grips
Stem
6061 Aluminum alloy, 3D-forged alloy, 25.4mm clamp, 50mm length
Saddle
VELOTRIC urban comfort ergonomic seat
Seat Post
6061 Aluminum alloy, 30.4 x 400mm, quick release clamp
Bike Weight
65lbs (29.4kg)

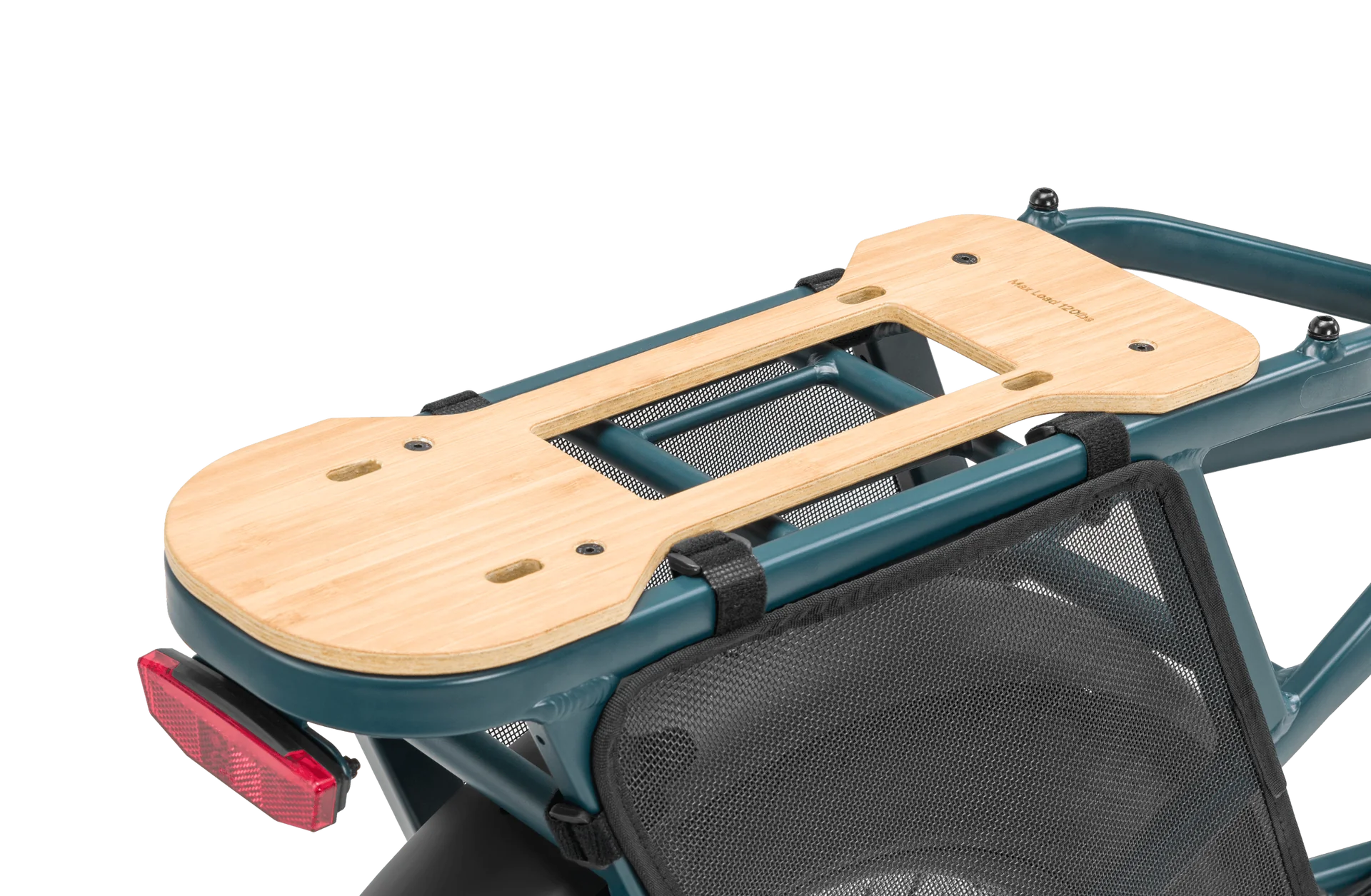

Rear Rack Load Capacity
120lbs (54kg)
Max Bike Load
440lbs

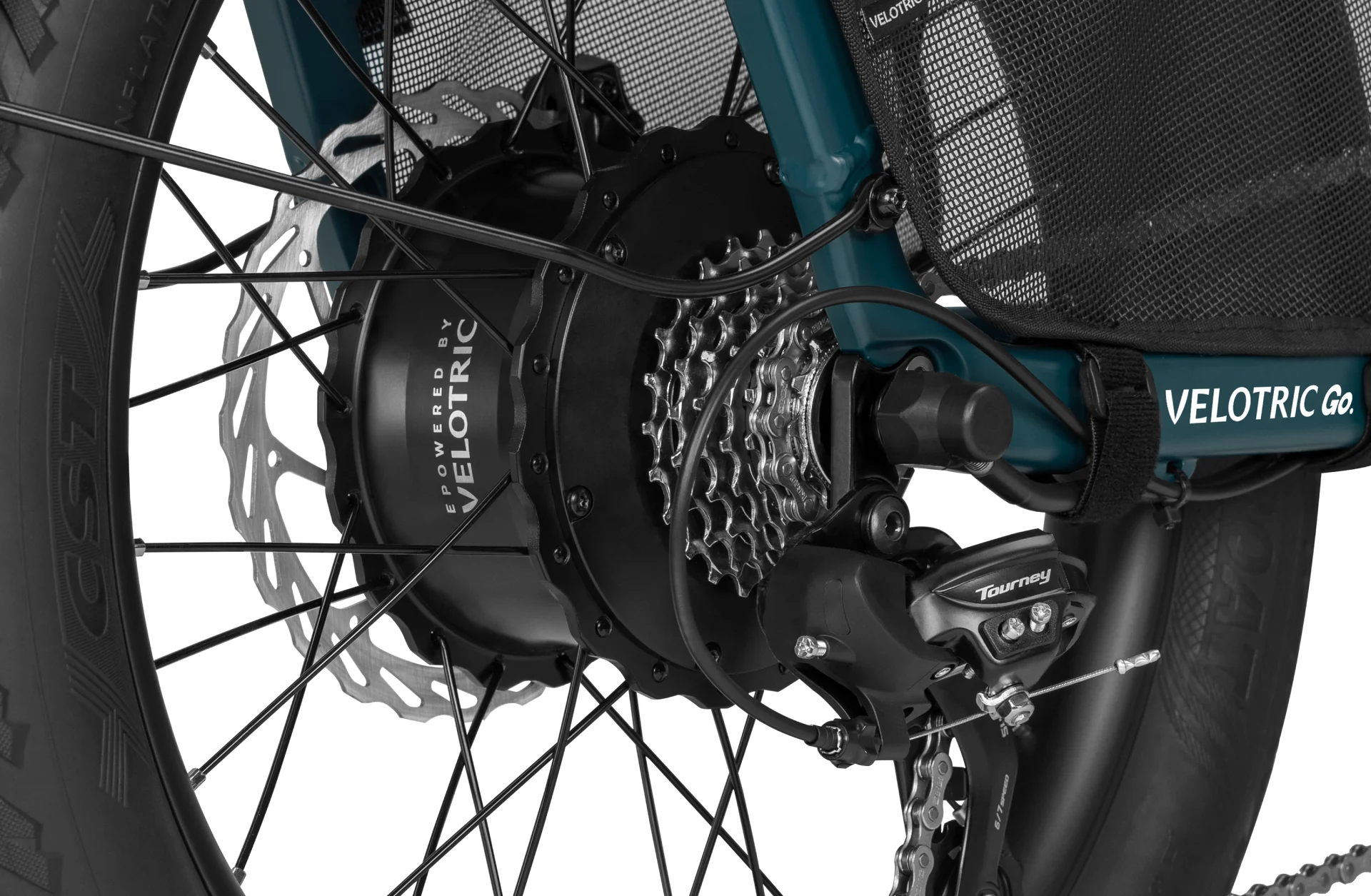

Motor Hub
500W (Peak 900W), 65Nm

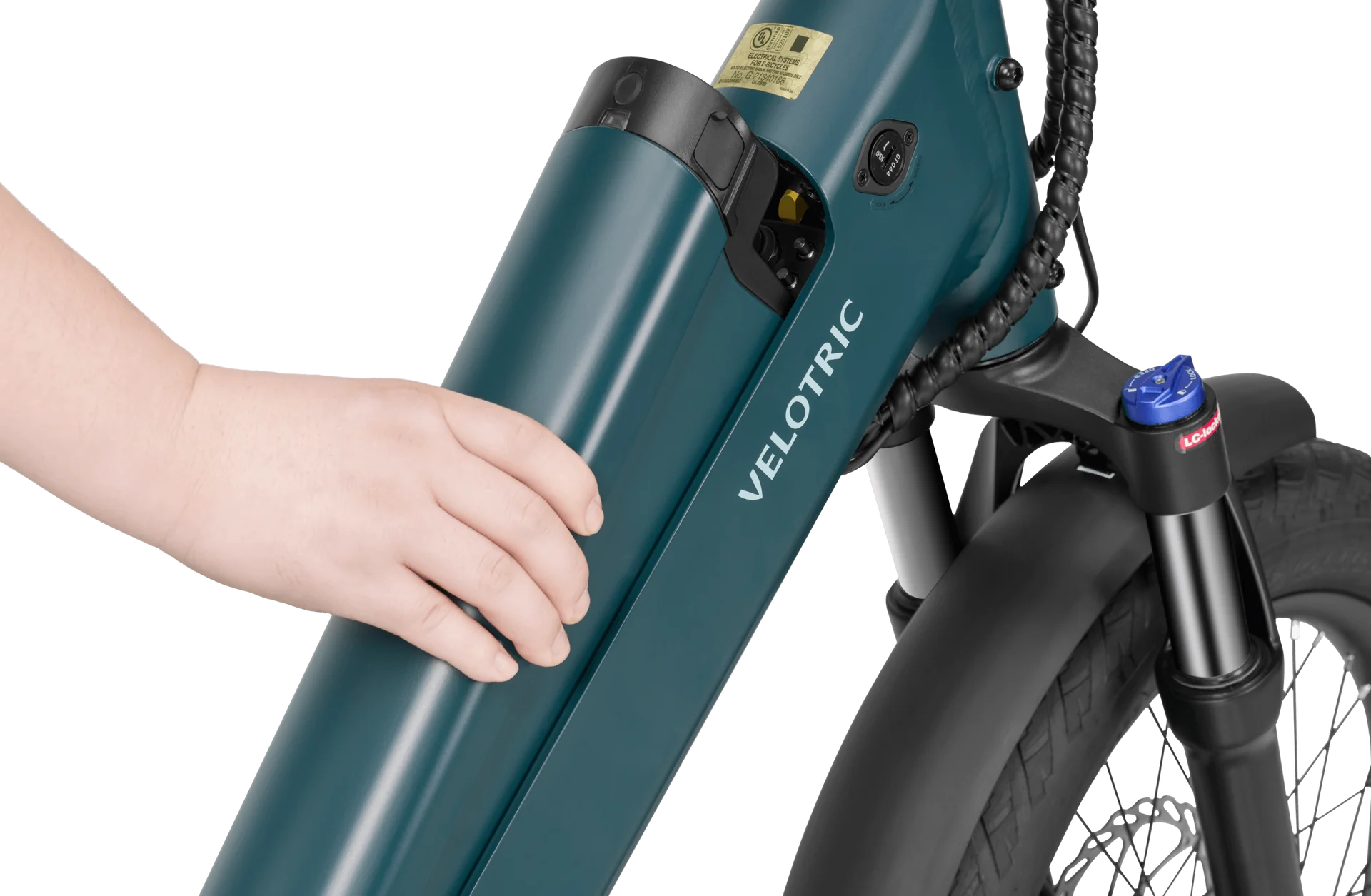

Battery
48V, 14.4Ah, 691.2Wh
Cell
LG 21700
Charger
48V, 3A, Operates on 100V-240V AC, 50-60Hz
Charging Time
0-80% 4 Hours, 0-100% 6 Hours
Sensor
Cadence sensor
Display
3.5" Backlit LCD display with speed, trip, battery, assist Level and more
Security
Apple Find My™
USB Port
5V 500mA, output for external devices
Throttle Assist
Thumb-control, removable
Headlight
12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle
Tail Light
Integrated with rear rack, brake highlight
Pedal Assist
Eco, Tour, Normal, Sport and Turbo pedal assist
Walk Mode
2.9 MPH
Water Resistant
IPX6
